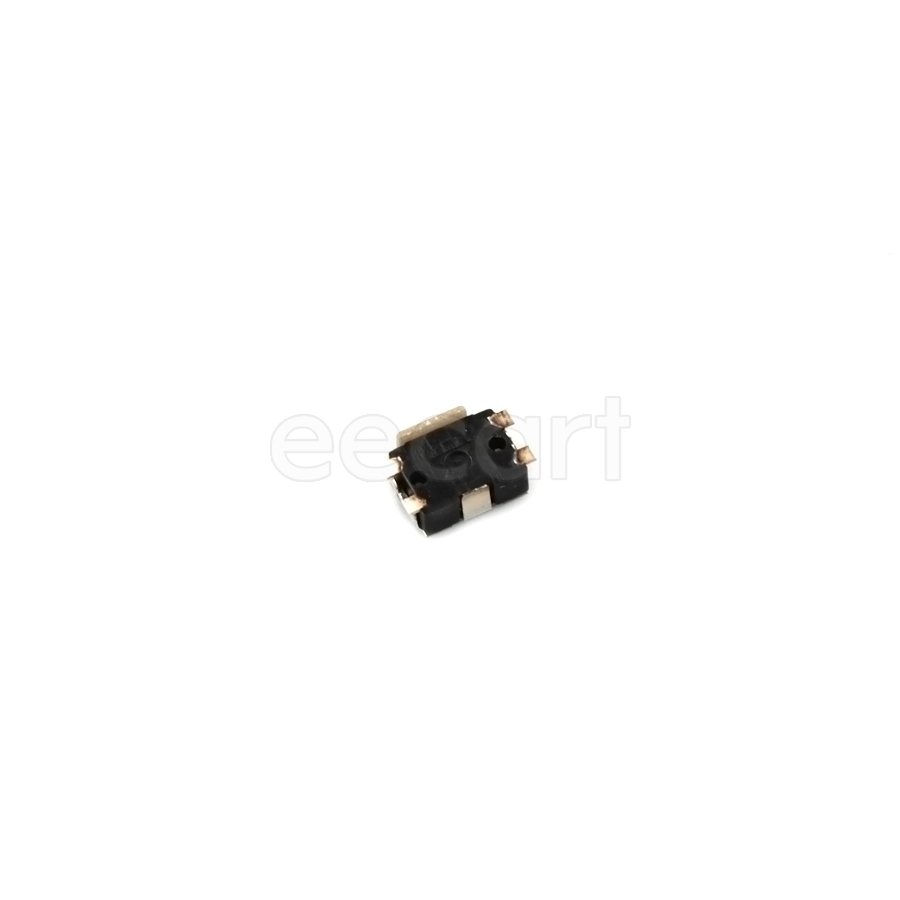

KMS221G LFS
Manufacturer:
C&K Components
Mfr.Part #:
KMS221G LFS
Datasheet:
Description:
Tactile Switches SMD/SMT OFF - (ON) 2 N Right Angle
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 32 V |
| Length | 3.55 mm |
| Width | 4.6 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Power Rating | 1 W |
| Packaging | Reel |
| Depth | 4.6 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Ratings | IP40 |
| Contact Material(Contact Finish) | Silver |
| Current Rating | 50 mA |
| Max Current Rating | 50 mA |
| Max Voltage Rating (DC) | 32 V |
| Orientation | Right Angle |
| Throw Configuration | SPST |
| Number of Positions | 2 |
| Contact Resistance | 100 mΩ |
| Switch Function | OFF - (ON) |
| Operating Force | 2 N |
| Switch Travel | 250 µm |
| Mechanical Life | 100 kcycles |
| Contact Current Rating | 50 mA |
| Actuator Type | Rectangular |
| Mounting Direction | Right Angle |
